TFS2-L
The use of Chilled Beams is always looked at with regard to
other false ceiling applications.
Specifically it is important to examine the choice of built-in
lighting units in order to ensure a proper lighting of the envi-
ronment, preserving its aesthetic look and the tidiness of the
false ceiling.
We are used to the presence of ceiling lighting units and more
and more frequently we find chilled beams, an air diffusion
type preferred because of its advantages in terms of comfort,
maintenance costs and system versatility.

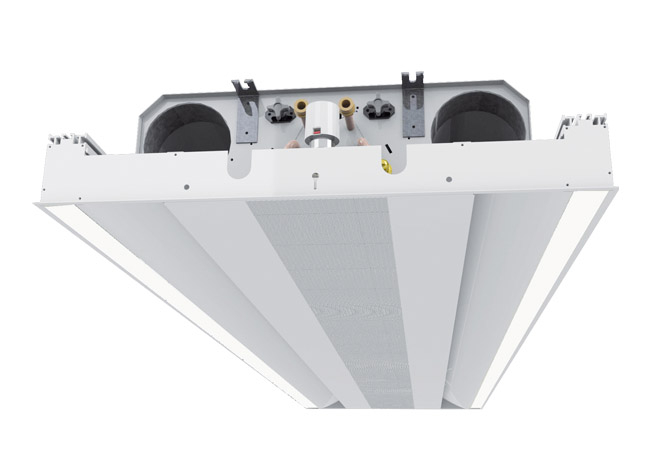

The model TFS2, in its TFS2-L new version, includes two mo-dern lighting units that are particularly attractive and effective.
Strips of continuous light are fully integrated into the beam,
simplifying its installation and having a remarkable effect.
The lighting unit is absolutely innovative and provides conti-nuous lighting, totally devoid of shade patches.
Single elements, separated from the chilled beams, are availa-ble to meet any requirement of supplementary lighting.
The profiles are made so to allow an optimum integration into
any kind of false ceiling.
In particular, this solution allows the installation flush with or
inside the false ceiling, eliminating the interfacing problems
that one may normally meet with this type of product.
If necessary, parts of the rooms can be supplied with just the
exposed portions of the TFS2-L allowing the maximum modu-larity and linearity.
The design is suitable for the most up-to-date office envi-ronments.

Specifications and size:
• For specifications and performance see data on section
concerning model TFS2.

Lighting technical data:
• Dimmable fluorescent light
• Screen with symmetric prismatic optics
• cut-off angle 65 °
• 92% transmission
• Frequency: 50/60Hz
• Voltage: 220-240V, 110-130V
• Power factor: > 97%
• Colour performance: Ra > 80
• Protection class: II
• Protection degree: IP20
• Max Power: 2 x 54 W (referred to a Chilled Beam module
of 1200 mm / exposed length)
• Possibility of connecting light spots in-line up to 400 W
maximum
